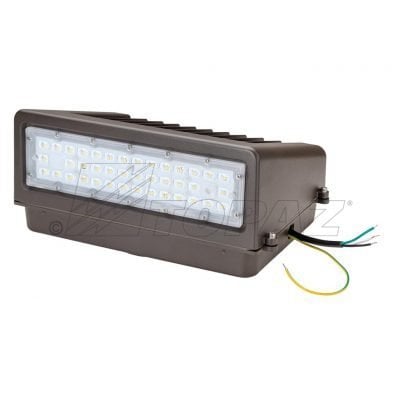

Paladin – LED Traditional Wall Pack Lumen & Kelvin Selectable

Paladin – LED Traditional Wall Pack Lumen & Kelvin Selectable

Features:
• Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.*
• Long-life LEDs provide at least 70% of initial lumen output (L70) for ≥ 130,000 hours of operation, and at least 90% of initial lumen output (L90) for ≥ 39,000 hours of operation.*
• LED chromaticity based on ≤ 5-step ANSI quadrangles.
• LED color maintenance ≤ 0.003 chromaticity shift ((Δu’v’) over the initial 6,000 of operation.
• Provides a range of 4,300 to 15,500 nominal lumens and 124 to 159 nominal lumens per watt (lm/W).
• 0-10vdc dimming drivers are standard. WARRANTY & LISTINGS
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index (Ra ) > 70.
• Cast aluminum housing with dark bronze, powder coat finish.
• Glass lens.
• Three ½” NPT threaded openings.
• Easy installation in new construction or retrofit applications.
* L70 & L90 hours are IES TM-21-11 calculated hours

Warranty / Listings:

• cULus listed for wet locations in ambient temperatures from 06-WPT-(7L /10L)-LKFS -40°C to 40°C (-40°F to 104°F). 06-WPT-15L-LKFS -40°C to 34°C (-40°F to 104°F).
• IP65 rated for ingress protection.
• Complies with FCC Part 15, class A.
• Surge protection = 4kV.
• 5-year warranty of all electronics and housing
