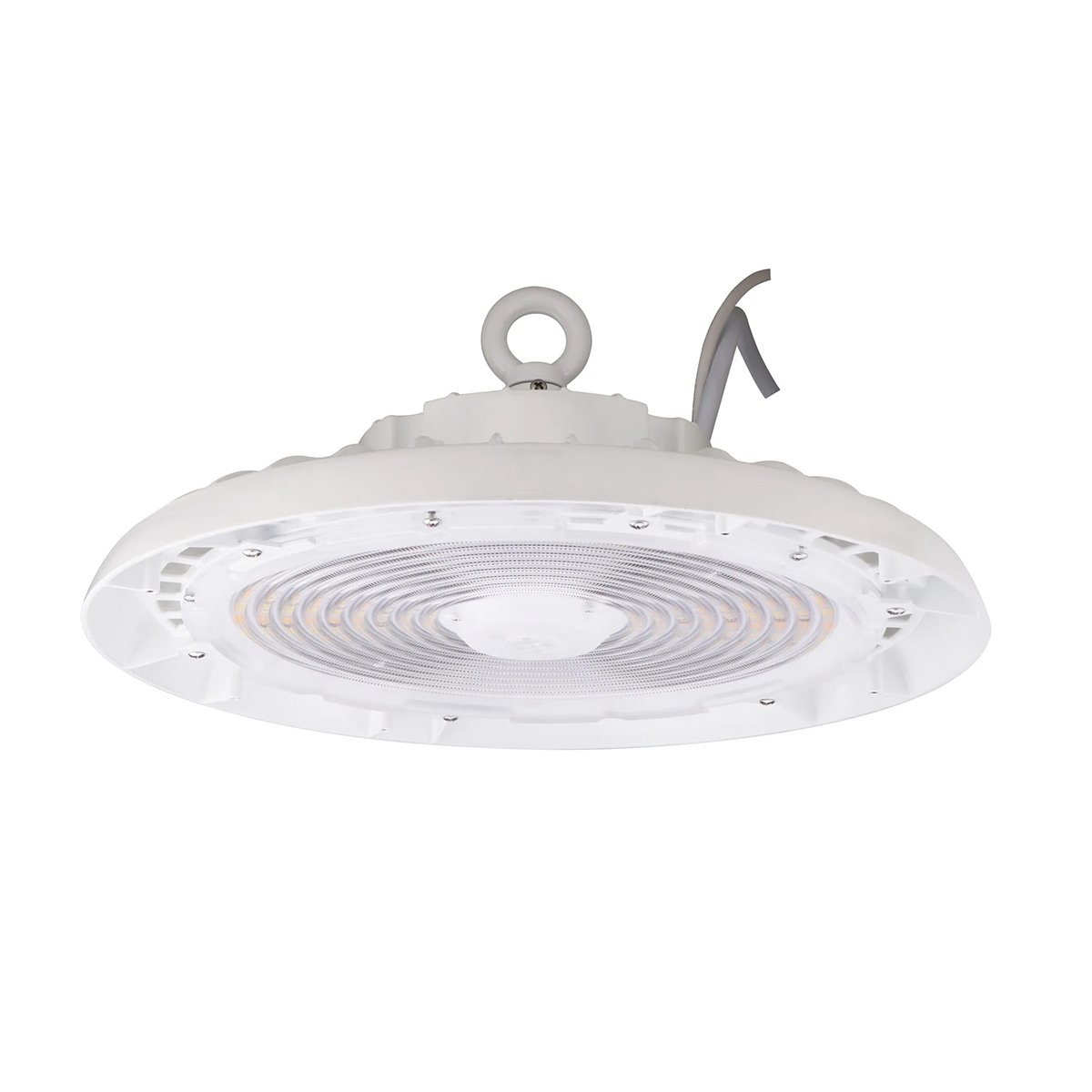

Paladin – LED Round High Bay Lumen & Kelvin Selectable – White Housing – 250W

Paladin – LED Round High Bay Lumen & Kelvin Selectable – White Housing – 250W

Features:
• Field selectable 4000k (neutral white) and 5000k (cool white) color temperatures.
• Long-life LEDs provide 149,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90).*
• LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 of operation.
• Provides a range of 16,000 to 35,000 nominal lumens.
• Universal 120-277 AC voltage (50-60Hz) and 6-foot incoming AC power cords are standard.
• 0-10vdc dimming drivers are standard.
• Watertight, compression-type electrical connectors.
• Mounting options include suspension from eyebolt (standard), yoke mounting, snap hook, and attachment to electrical conduit.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index (Ra) > 80.
• Die cast aluminum housing, painted white.
• Polycarbonate lens.
• Sensor ready. Sensor and remote control sold separately. Remote control required to change factory sensor settings.
• Easy installation in new construction or retrofit.
* L70 & L90 hours are IES TM-21-11 calculated hours.

Mounting Options:
• Suspension from eyebolt (included) is standard.
• Ceiling-mounted installation (using optional yoke mounting bracket, provides up to 180° of adjustability).
• Two ways to mount luminaire to electrical conduit:
– Attach conduit (½” NPS) to optional yoke mounting bracket.
– Optional pendant snap hook.

Warranty & Listings:
• cULus listed for wet locations in ambient temperatures from-40°C to 50°C (-40°F to 122°F).
• Input transient surge protection = 6kV.
• Complies with FCC Part 15, class A.
• IP65 rated for ingress protection.
• 5-year warranty of all electronics and housing.
