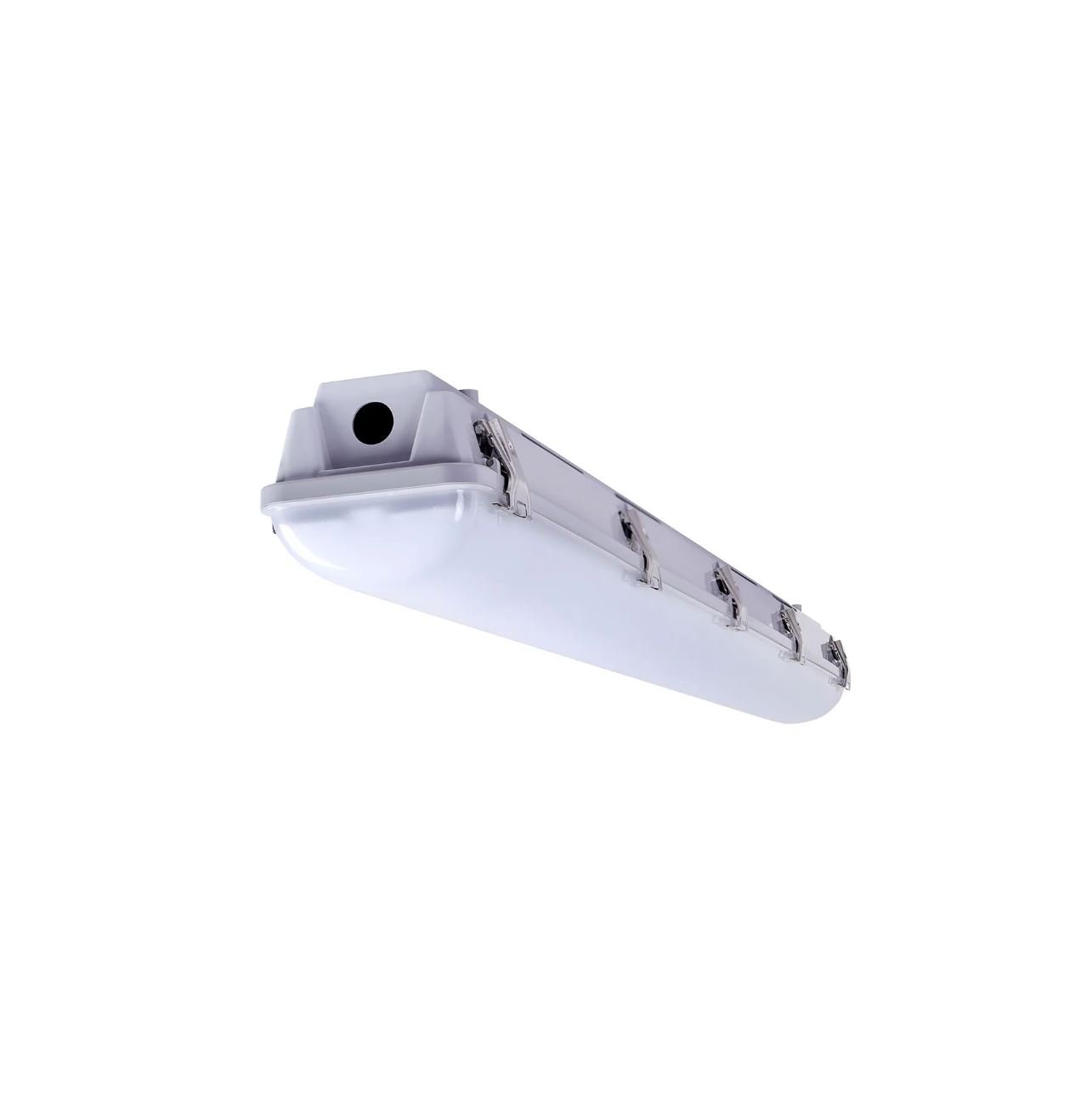

Paladin – 4FT LED Vapor Tight Fixture – Power & Color Temperature Selectable

Specifications:

▪ Field selectable color temperatures include 3500k, 4000k and 5000k.
▪ Long-life LEDs provide 137,000 hours of operation with at least 70% of initial lumen output (L70), and 42,000 hours with at least 90% of initial lumen output (L90).
▪ LED chromaticity based on < 5-step ANSI quadrangles.
▪ LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.
▪ Provides 6,000, 14,000, or 20,000 nominal lumens using 42, 100, or 150 nominal watts.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Polycarbonate housing and frosted lenses are standard.
▪ Easy installation in new construction or retrofit.

Listings:

▪ cETLus listed for damp locations in ambient temperatures from -20°C to 50°C (-4°F to 122°F).
▪ VT-6L = DLC standard.
▪ VT-14L & VT-20L = DLC premium.
▪ IP67 rated for ingress protection.
▪ IK10 rated for impact.
▪ ETL sanitation listed for non-splash food zone to comply with NSF/ANSI 2 standard.
▪ NEMA 4X.
▪ Complies with FCC Part 15, class A.
▪ Complies with IEC/EN61000-4-5, input transient protection (1.0kV).
▪ Surge protection = 1.0kV.
▪ 5-year warranty of all electronics and housing.
